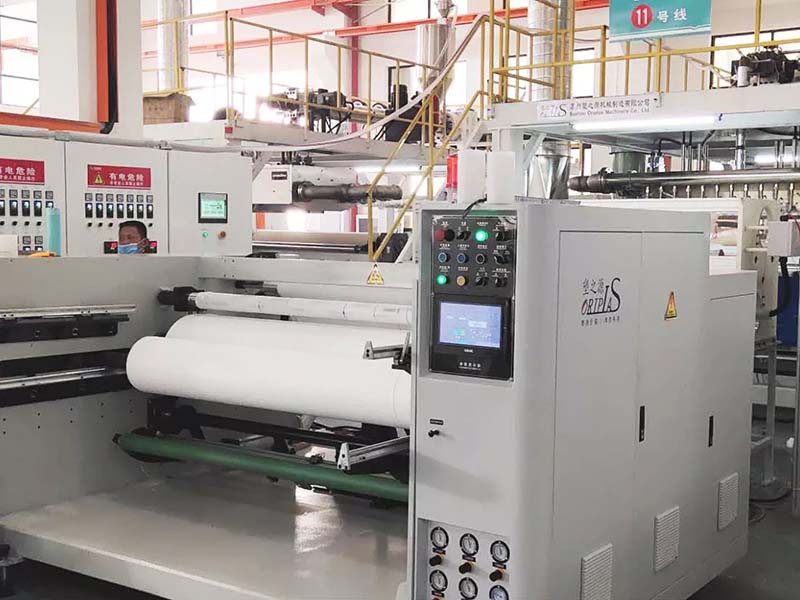

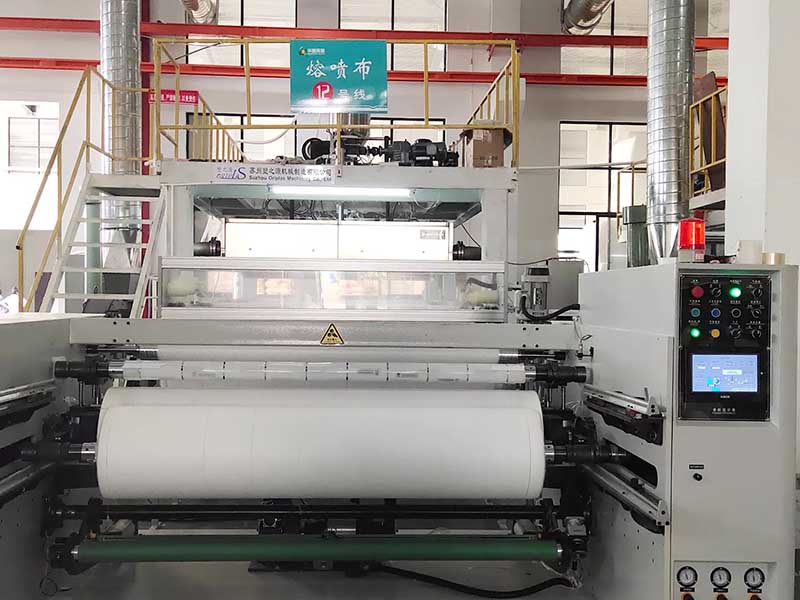

Melt-blown cloth production line
Melt-blown cloth production line
Melt-blown cloth production line
Melt-blown cloth production line
Category:
Other series
Outline:
Key words:
Product Details
The melt-blown cloth production line automatically sucks polypropylene into the screw extruder through the vacuum feeding machine, and the extruder heats and melts the PP particles into liquid. The blower or air compressor sends the compressed air in the air tank into the air heating tank for heating. Hot air uses pressure to eject molten polypropylene material from the nozzle to form filaments (the nozzle contains hundreds of small holes), and then the ejected filaments reach the height of the screen machine, and then reach the winding equipment.
Equipment features:
● This machine is equipped with precision metering pump, screen changer, electrostatic electret, etc., to ensure the quality standard above N-95.
● Extrusion system: high output and good stability;
● Melt metering pump technology: the specially designed melt metering pump adjusts the speed of the extruder through precise pressure measurement before the pump and microcomputer processing to maintain stable pressure and orderly logistics, optimize the feeding process and ensure the smoothness of the extrusion die;
● Extrusion die and spinneret part: discrete and horizontal structure, which makes the spunbonded nonwoven fabric produced uniformly spread, firm and breathable;
● Winding machine: winding is smooth and automatic.
| technical data | |||||
| model | Screw diameter | material | Product width | capacity (maximum) |
Main motor power |
| SZY65 | 65 | sulan | 800mm | 500-600公斤/天 | 22KW |
| SZY90 | 90 | sulan | 1600mm | 1200-1500kg/d | 45KW |
| SZY105 | 105 | sulan | 2400mm | 2000-2500kg/d | 55KW |
| SZY135 | 135 | sulan | 3200mm | 3000-3500kg/d | 75KW |
