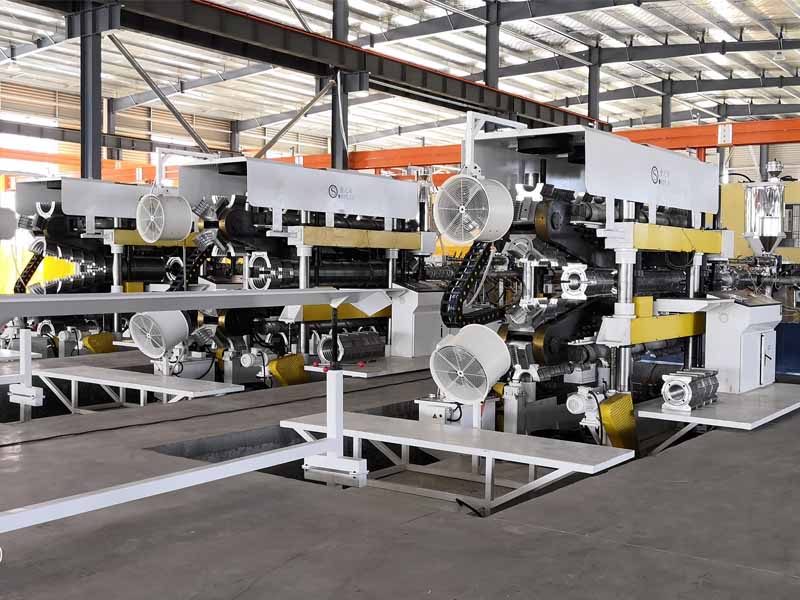

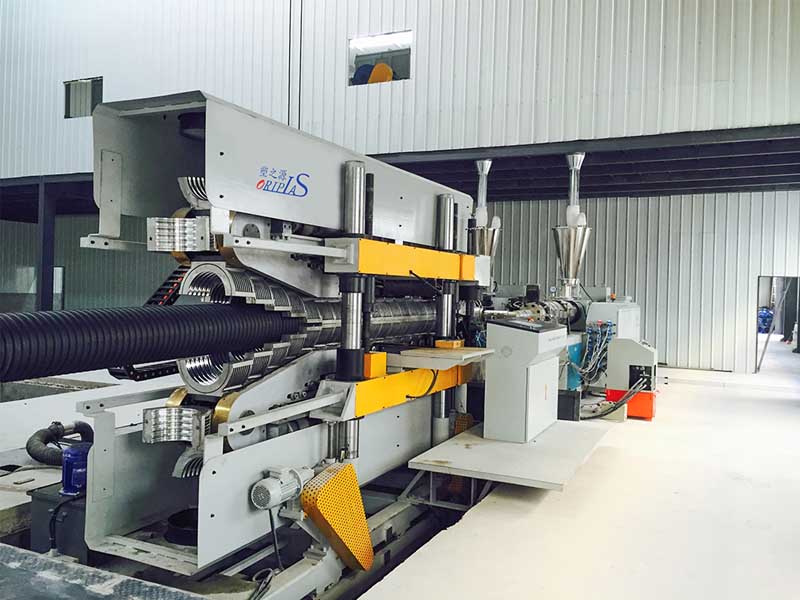

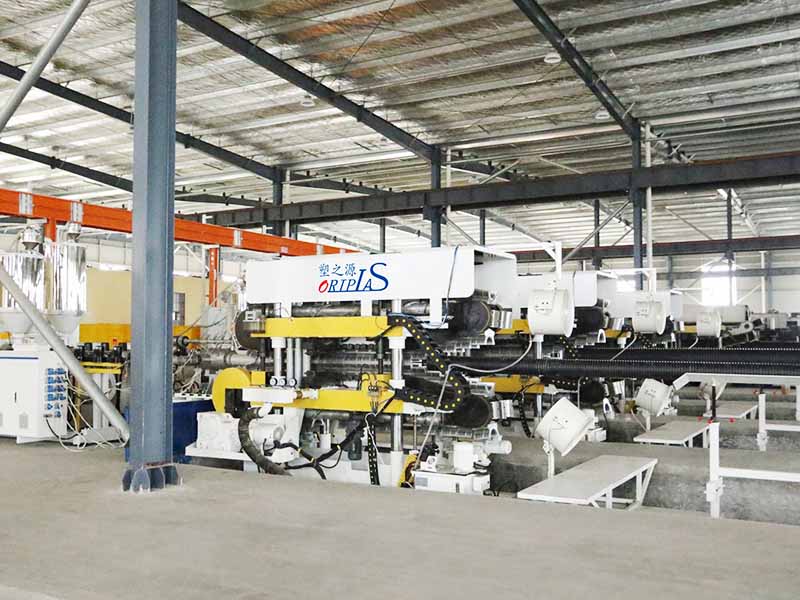

HDPE PP vertical double-wall corrugated pipe production line

Category:

Drainage pipe extrusion production line series

Outline:

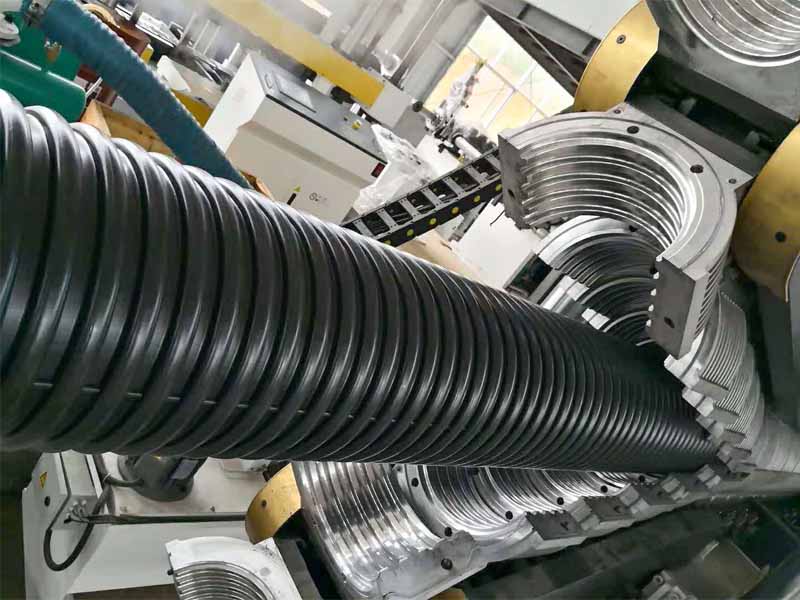

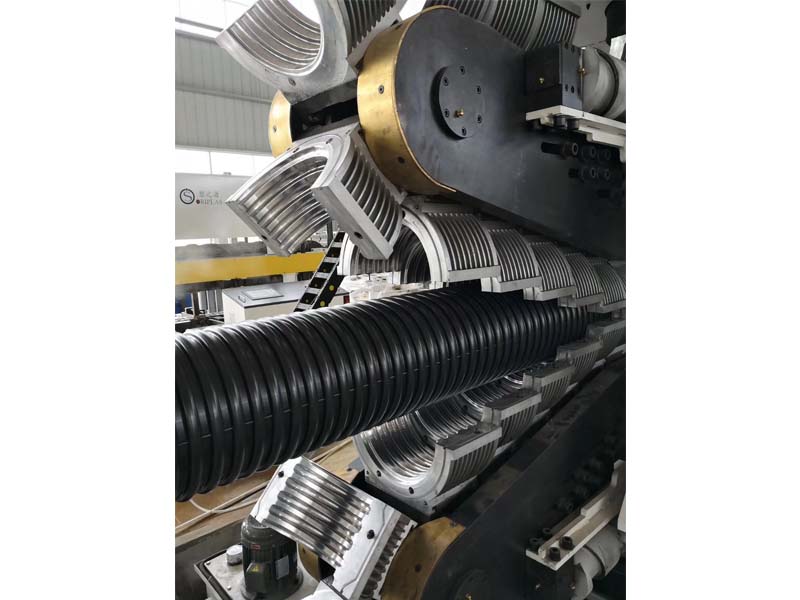

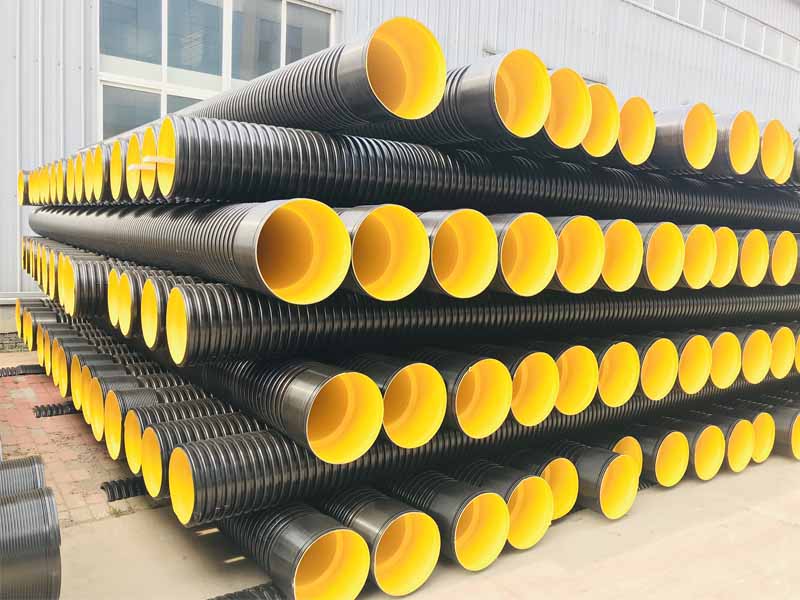

Double-wall corrugated pipe is mainly used for drainage system. It is a computer-controlled production line. It has the characteristics of high and stable output capacity and high degree of operation automation. PE and PP can choose high-efficiency single-screw or twin-screw extruder; For PVC, conical twin screw extruder or parallel twin screw extruder can be selected. The molding system consists of a mold and a molding machine. Mold blocks can be easily replaced, and they have air or water cooling systems. Cutting machine can ensure high-precision cutting. The production line can also be equipped with Siemens PLC system.

Key words:

Double-wall corrugated pipe,drainage system

Other Products

Message

Product Details

Technical parameters of vertical corrugated pipeline
model	caliber（mm）	PVC extrusion capacity（Kg/h）	HDPE extrusion capacity（Kg/h）	Maximum speed(m/min)	aggregate capacity（KW）
SZYBW-600	200-600	650-800	600-800	3.5	400
SZYBW-800	200-800	1200	1000	3	580
SZYBW-1000	300-1000	1300	1200	2.5	610
SZYBW-1200	600-1200	1400	1400	1	800
SZYBW-1500	1000-1500	-----	2000	0.8	900
