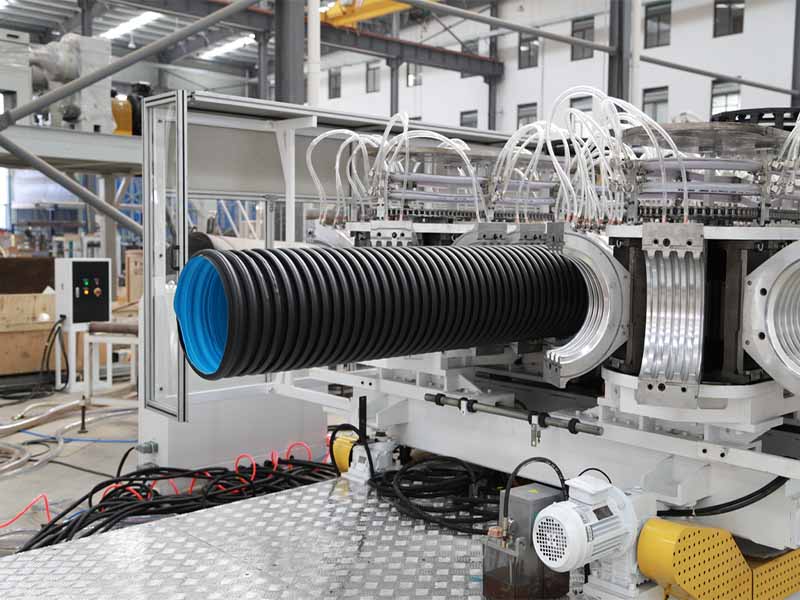

HDPE/PP horizontal double-wall corrugated pipe production line

HDPE/PP horizontal double-wall corrugated pipe production line
HDPE/PP horizontal double-wall corrugated pipe production line
HDPE/PP horizontal double-wall corrugated pipe production line
HDPE/PP horizontal double-wall corrugated pipe production line
HDPE/PP horizontal double-wall corrugated pipe production line
HDPE/PP horizontal double-wall corrugated pipe production line
HDPE/PP horizontal double-wall corrugated pipe production line
HDPE/PP horizontal double-wall corrugated pipe production line
HDPE/PP horizontal double-wall corrugated pipe production line HDPE/PP horizontal double-wall corrugated pipe production line
HDPE/PP horizontal double-wall corrugated pipe production line HDPE/PP horizontal double-wall corrugated pipe production line
HDPE/PP horizontal double-wall corrugated pipe production line HDPE/PP horizontal double-wall corrugated pipe production line
HDPE/PP horizontal double-wall corrugated pipe production line HDPE/PP horizontal double-wall corrugated pipe production line
HDPE/PP horizontal double-wall corrugated pipe production line HDPE/PP horizontal double-wall corrugated pipe production line
HDPE/PP horizontal double-wall corrugated pipe production line HDPE/PP horizontal double-wall corrugated pipe production line
HDPE/PP horizontal double-wall corrugated pipe production line HDPE/PP horizontal double-wall corrugated pipe production line
HDPE/PP horizontal double-wall corrugated pipe production line HDPE/PP horizontal double-wall corrugated pipe production line

Category:

Drainage pipe extrusion production line series

Outline:

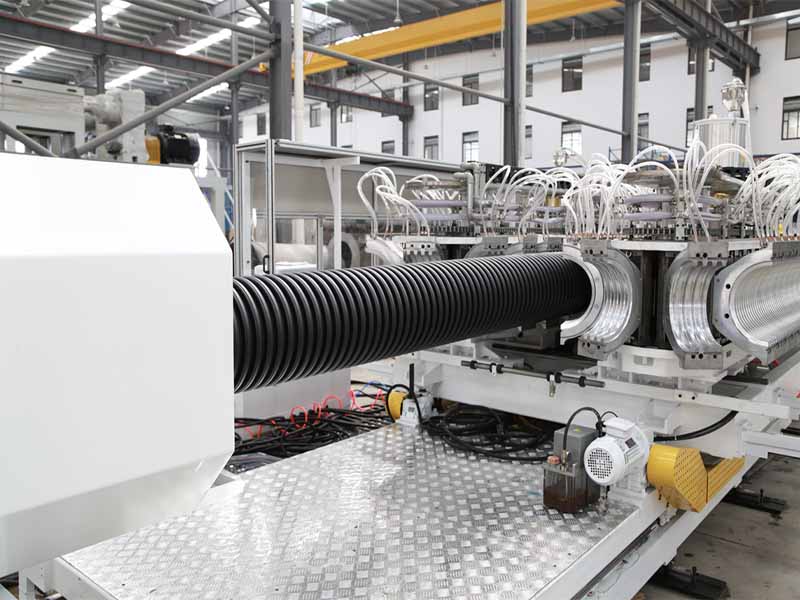

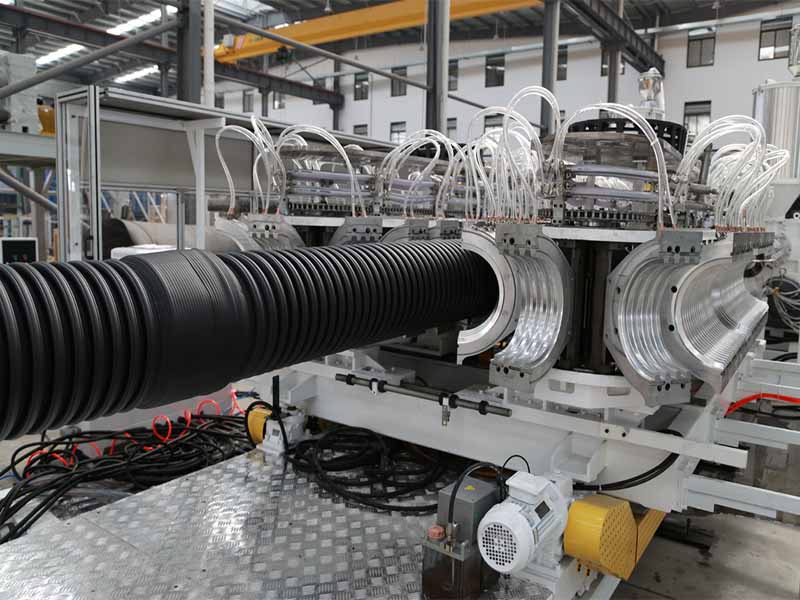

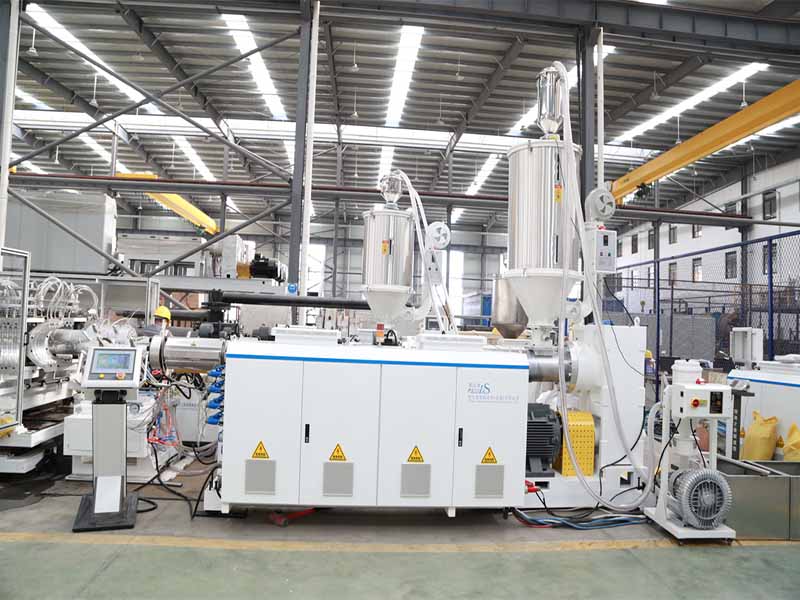

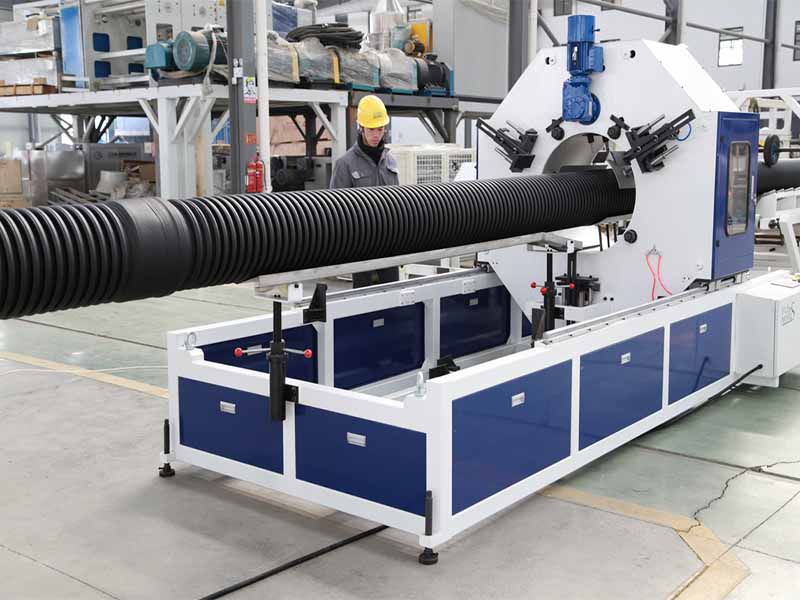

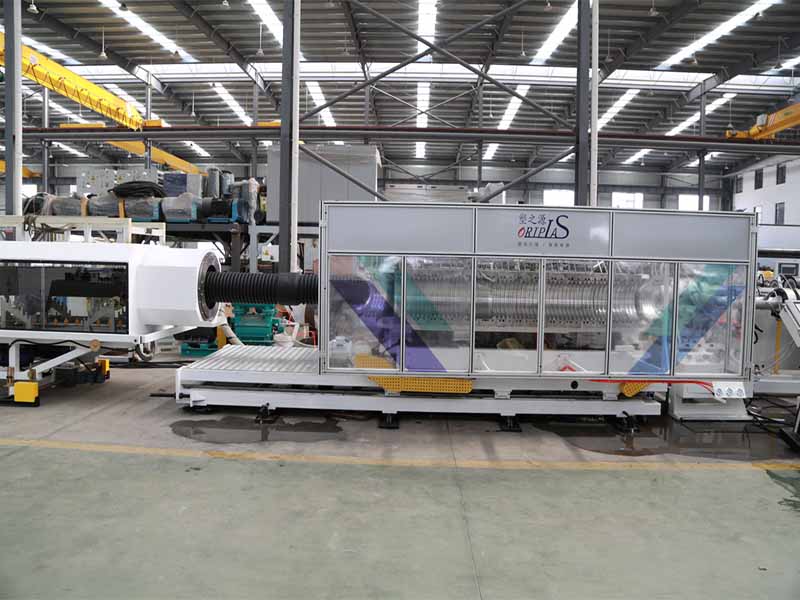

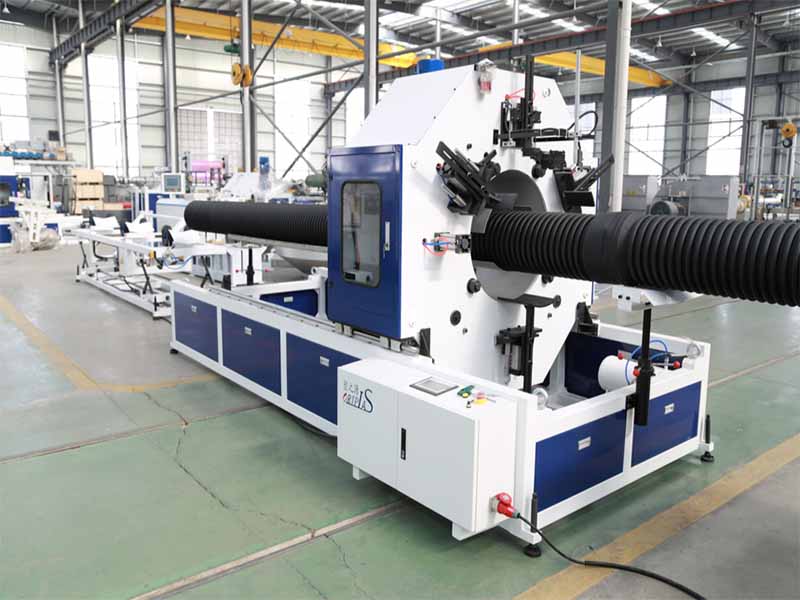

Double-wall corrugated pipe is mainly used for drainage system. It is a computer-controlled production line. It has the characteristics of high and stable output capacity and high degree of operation automation. PE and PP can choose high-efficiency single-screw or twin-screw extruder; For PVC, conical twin screw extruder or parallel twin screw extruder can be selected. The molding system consists of a mold and a molding machine. Mold blocks can be easily replaced, and they are cooled by high-pressure water. Online automatic double-wall flaring cutting machine can ensure high-precision cutting. The production line can also be equipped with Siemens PLC system.

Key words:

Double-wall corrugated pipe, drainage system
Other Products
Message

Product Details



Technical data of horizontal molding machine
model caliber（mm） PVC extrusion capacity（kg/h） HDPE extrusion capacity（kg/h） Maximum speed(m/min) aggregate capacity(KW)
SZYHBW-300 100-300 650 600 6.5 400
SZYHBW-500 150-500 800 1000 6.5 580
SZYHBW-1000 200-1000 1300 1900 3.5 610
SZYHBW-1200 600-1200 1400 2000 1.5 800
SZYHBW-1500 1000-1500   2300 0.8 900
