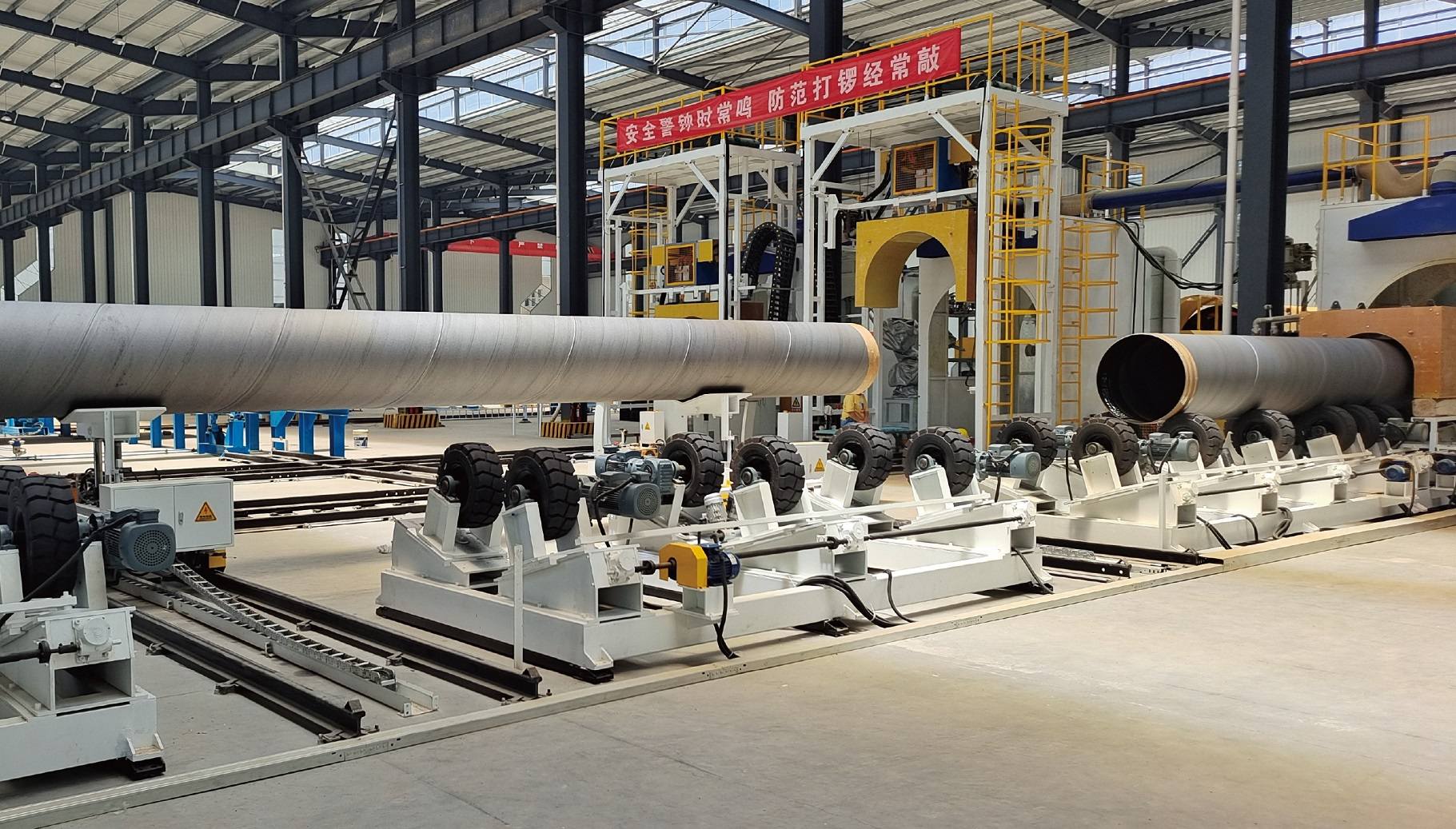

Polyurethane Spray Winding 3PE Coated Steel Pipe Production Line

Category:

Polyurethane spray winding insulation production line series

Outline:

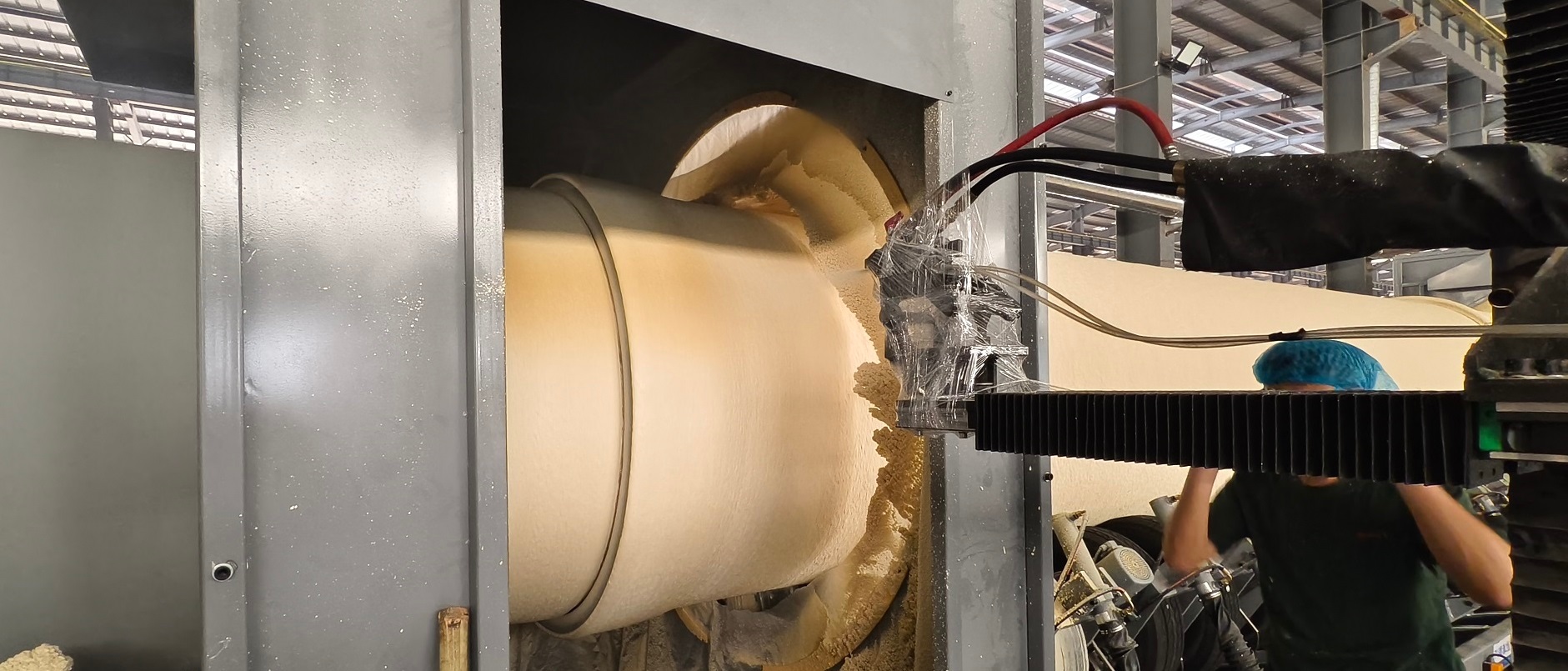

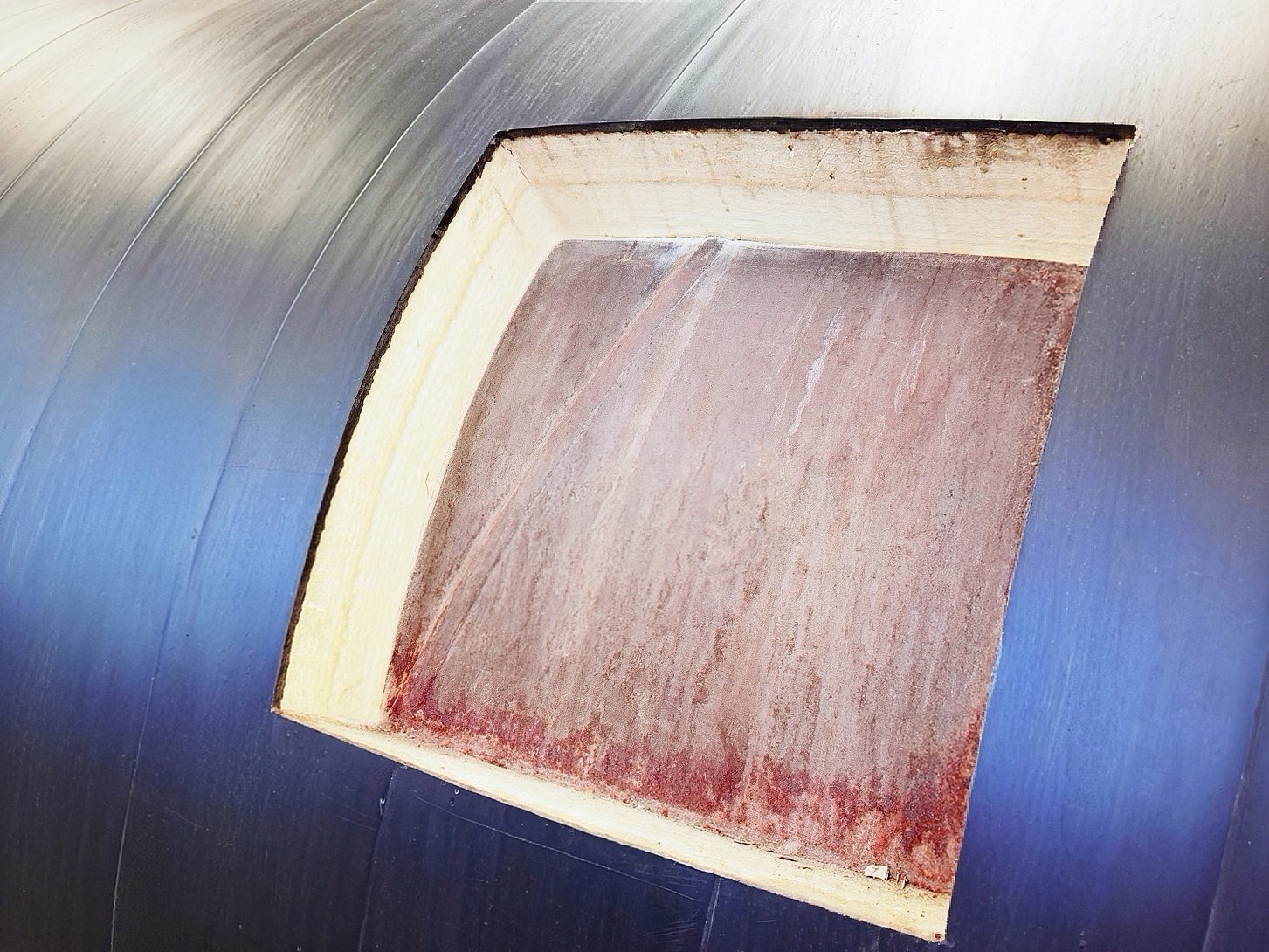

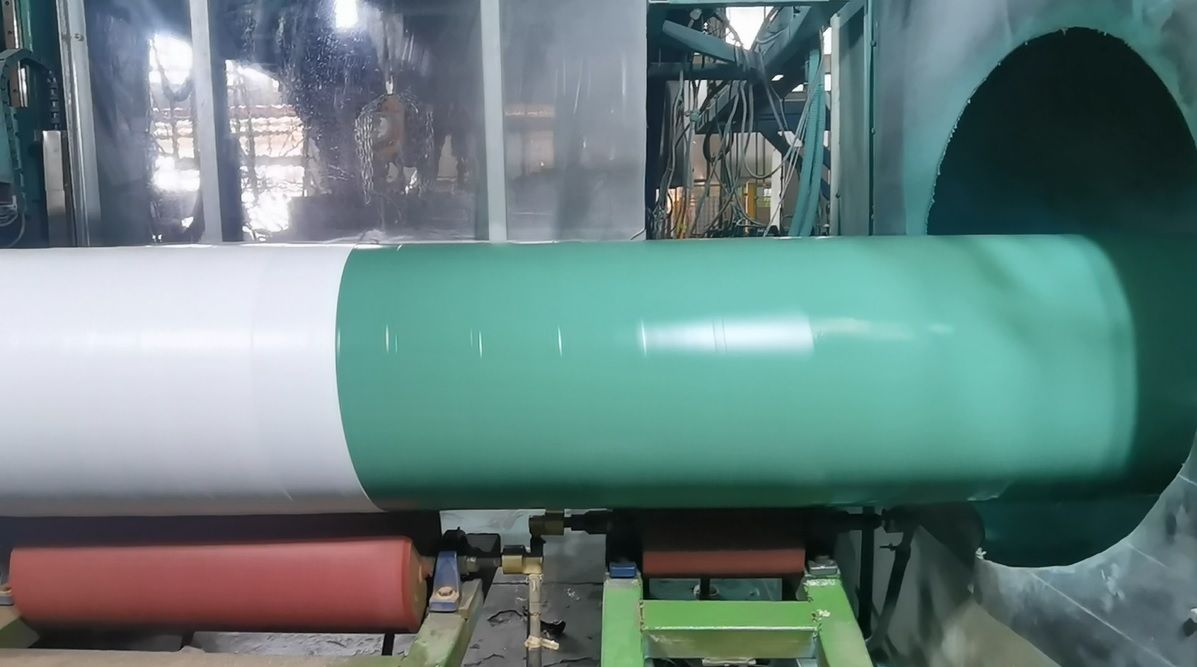

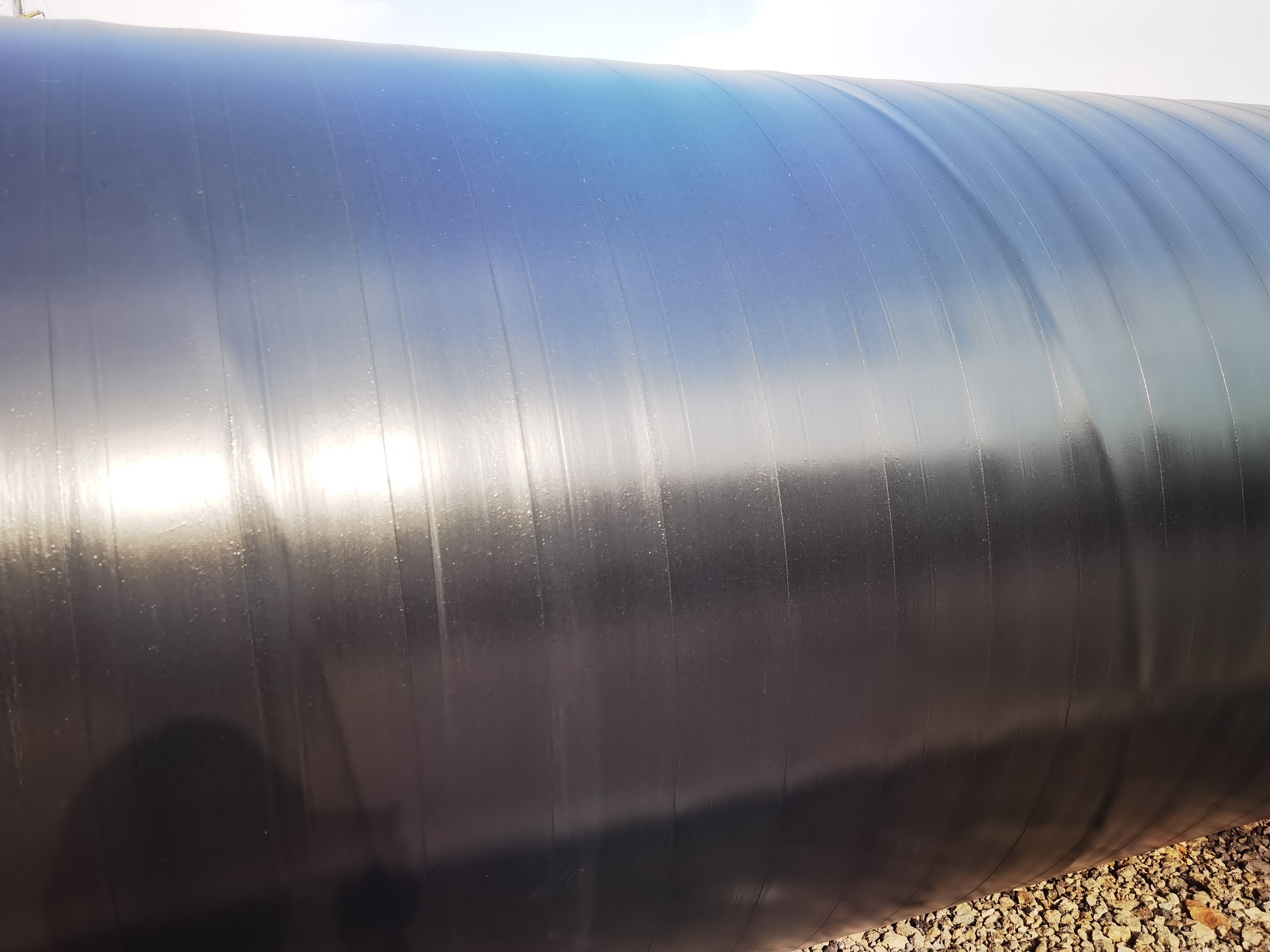

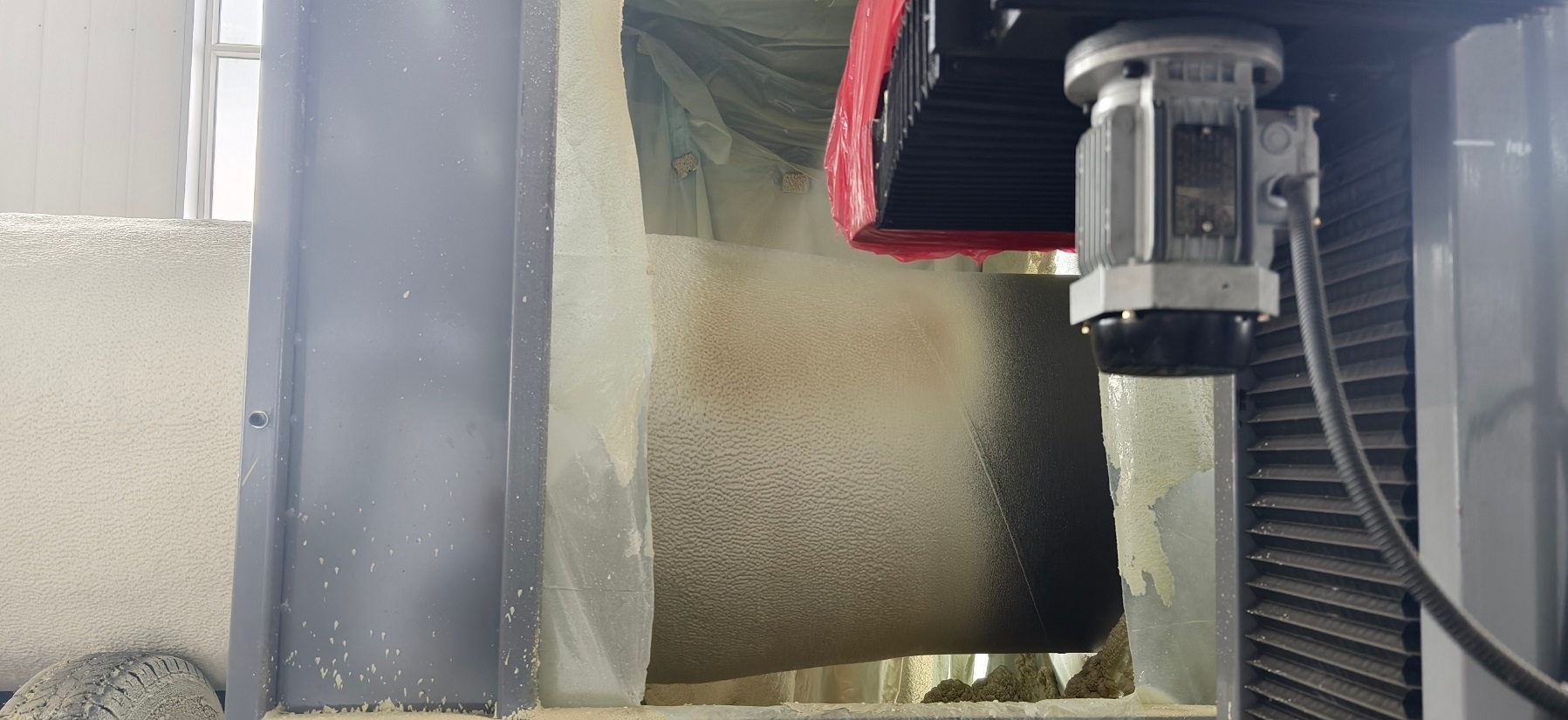

The spray winding insulation pipe is composed of steel pipe (working pipe) for transmision medium, polyurethane rigid foam (insulation pipe), and high-density polyethylene outer casing(outer sheath). Polyurethane spraying uses urethane spraying equipment to continuously spray the evenly mixed polyurethane raw materials on the outer surface of the steel pipe to form a polyurethane thermal inslation layer. Polyethylene winding uses extrusion quipment to continuously wind the molten polyethylene sheet outside the polyurethane thermal insulation layer.Surface, the process of forming a continuous and dense polyethylene outer sheath.

Key words:

Other Products

Message

Product Details

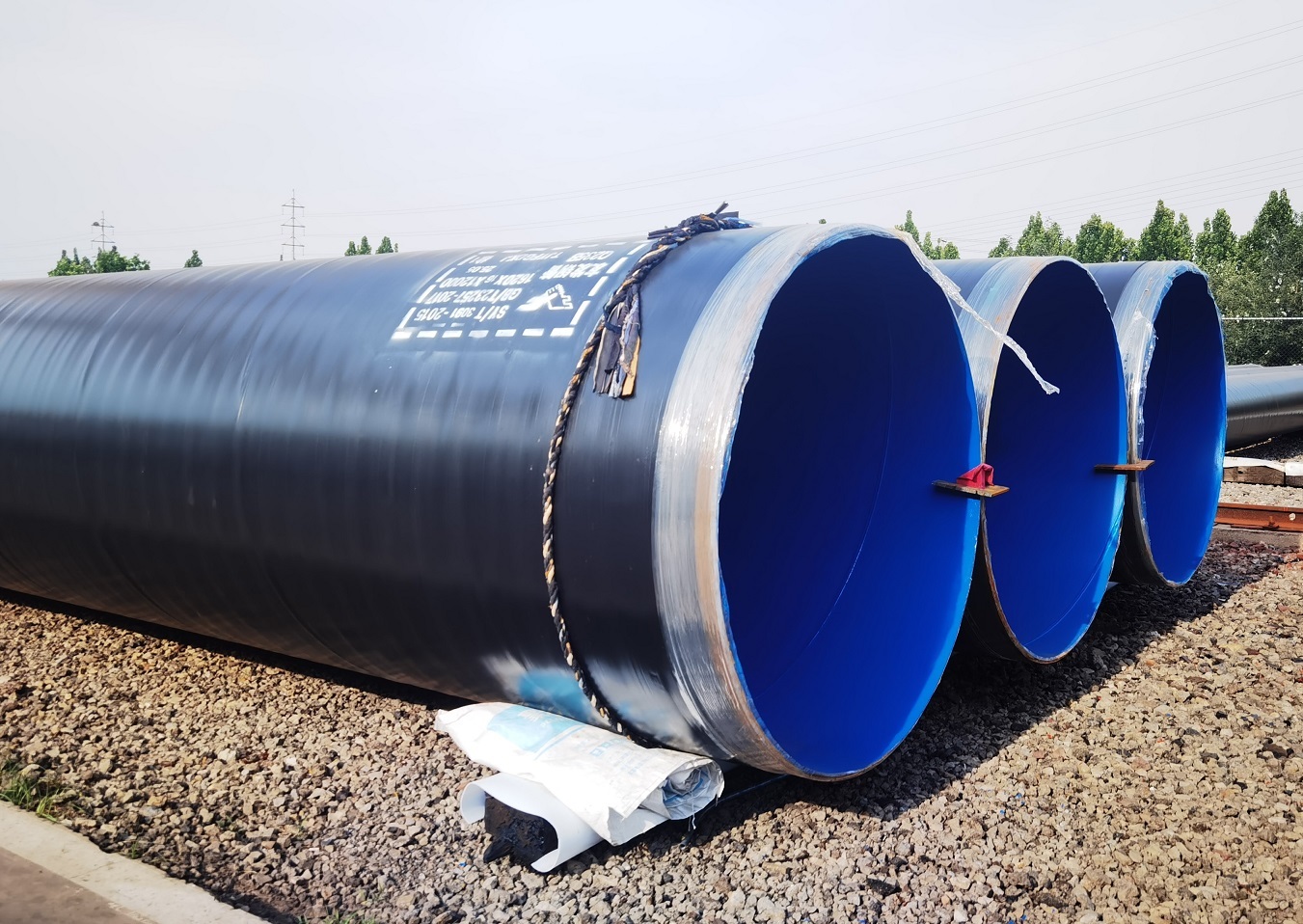

Because of its low heat loss,good anti-corrosion and insulation performance, fast and safe construction, etc,it is widely used in liquid and gas transportation pipe networks, central heating networks, and is recognized as an environmentally friendly and energy-saving product.Polyurethane direct buried thermal insulation pipe is suitable for thermal insulation and cold insulation projects of various media in the range of-50℃ to 150℃.

Technical Data

Type	Pipe Diameter(mm)	Extruder	Capacity(kg/h)	Power(kw)
SZYLXPTCR-2000	219-2020	SZYSGX120/40	1500-180	500
SZYJXPTCR-3000	630-3020	SZYSGX150/40	1800-2500	630
